Configuring Calendar tile-specific settings

To configure settings specific to Calendar tiles:

  1. Click the gear icon > Calendar Tile Settings.

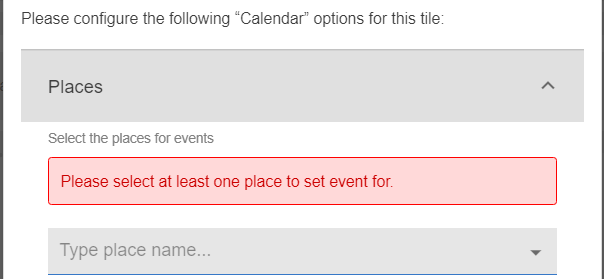

  2. Enter the Place(s) to set the events.

    Calendar tile: Places to set the events

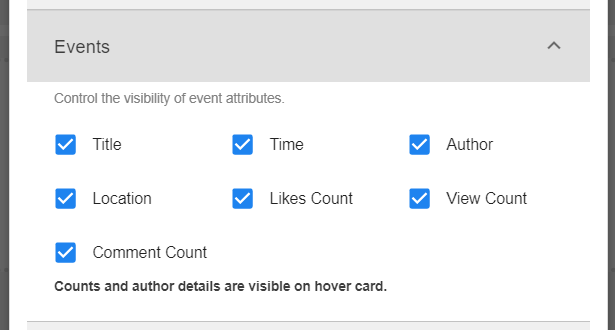

  3. Select the Event attributes to be displayed for an event:

    Calendar tile: Event attributes

    An event can be distinguished by the following attributes: Title, Time, Author, Location, Likes Count, View Count, and Comment Count.

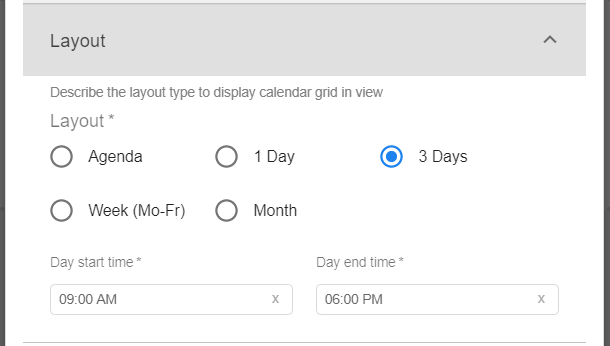

  4. Describe the Layout to be displayed when the configuration of the tile is rendered:

    Calendar tile: Layout settings
    • Agenda: Select the maximum number of events to be displayed from the dropdown values - 1, 3, 5, 10, 25
    • 1 Day (Today), with event start/end times
    • 3 Days (Today + 2 days), with event start/end times
    • Week (Monday to Friday), with event start/end times
    • Month

    To set the display hours, select the Day start time and Day end time using the time picker.

  5. Select Continue to save the settings.
  6. Click Save Tile Settings.

Calendar tile is configured successfully.

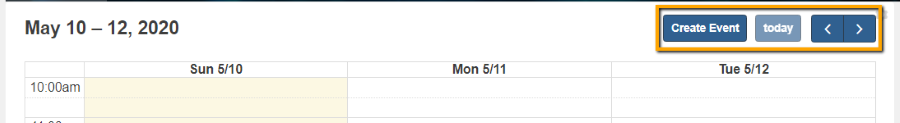

After the tile is rendered, you can use the options on the upper right to browse events: Create Event, display events for Today, browse events for days previously or in future < >.


Calendar tile: Browsing a tile
