Column Type Size Nulls Auto Default Children Parents Comments
workflowid int8 19
objid int8 19
typeid int8 19
jivedoctype.typeid Implied Constraint R
userid int8 19
jiveuser.userid Implied Constraint R
approved int2 5
rejected int2 5
creationtime int8 19
approvaltime int8 19  √  null
requestmessage varchar 255  √  null
responsemessage varchar 255  √  null
queuedtype int2 5

Table contained 0 rows at Fri Aug 24 10:15 PDT 2012

Indexes:
Column(s) Type Sort Constraint Name
workflowid + objid + typeid + userid Primary key Asc/Asc/Asc/Asc jawrkflw_pk
userid Performance Asc jvapprwkfl_userid_idx

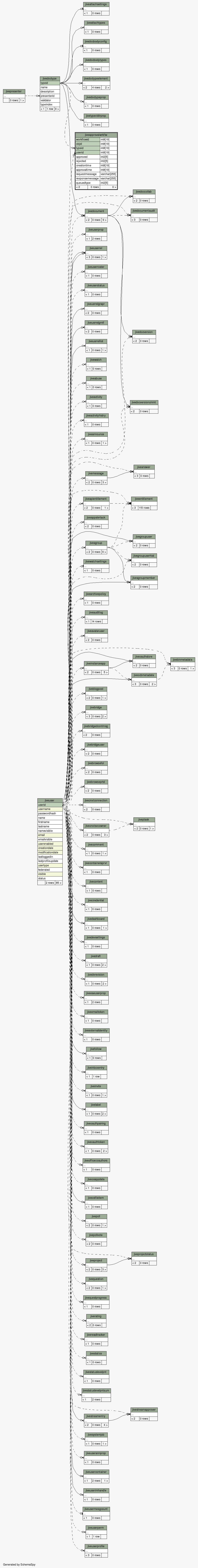

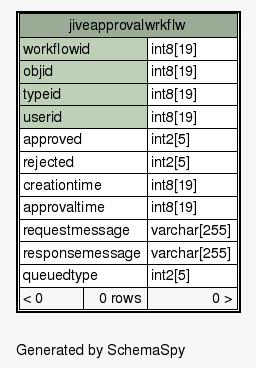

Close relationships:
