Table sbs6a.public.jivecnxtendpoint Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
endpointid int8 19
jivecnxtconnection.serviceid jvcx_fk_endpoint R
jivecnxtsvcheader.serviceid jvhdr_fk_endpoint R
jivecnxtsvcowner.serviceid jvown_fk_endpoint R
jivecnxtsvcprop.serviceid jvprop_fk_endpoint R
jiveeptagjoin.endpointid jveptagjoin_fk_ep R
authstyleid int8 19
jivecnxtauthstyle.authstyleid jvep_fk_authstyle R
creationdate int8 19
description varchar 2048  √  null
displayname varchar 255  √  null
documentationurl varchar 2048  √  null
enabled int2 5
iconurl varchar 2048  √  null
lenient int2 5 0
modificationdate int8 19
name varchar 255
jiveproperty.name Implied Constraint R
url varchar 2048
wsdlurl varchar 2048  √  null

Table contained 0 rows at Fri Aug 24 10:15 PDT 2012

Indexes:
Column(s) Type Sort Constraint Name
endpointid Primary key Asc jvcnxtep_pk
name Must be unique Asc jvcnxtep_uk_name

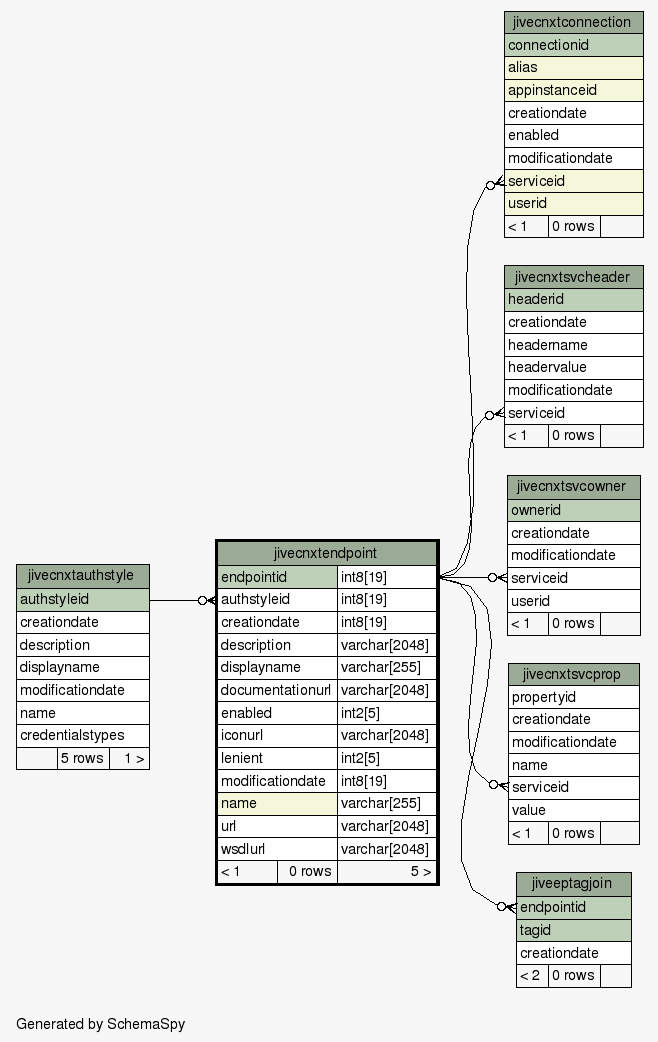

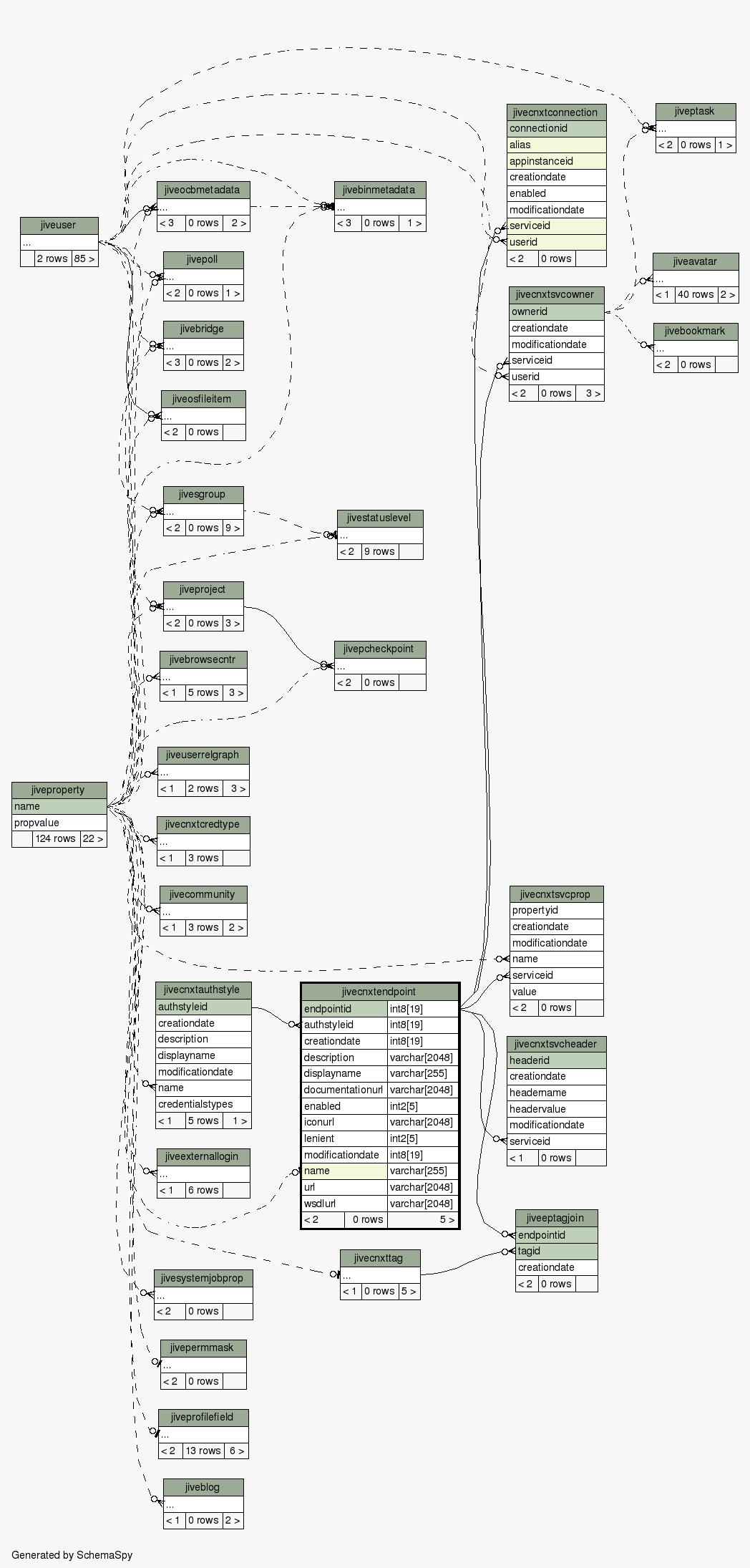

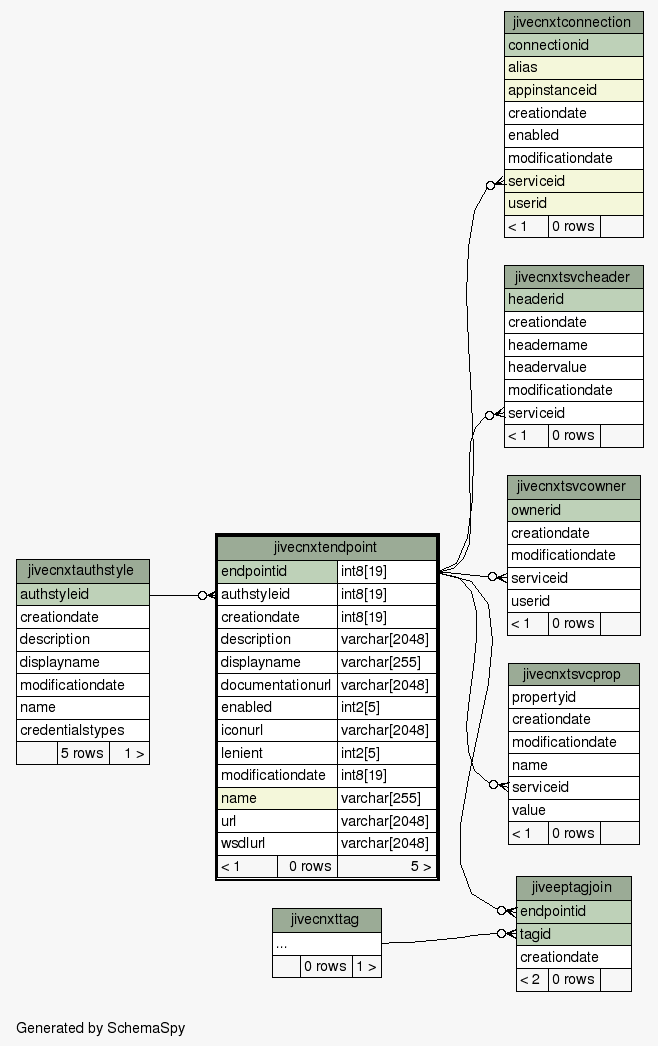

Close relationships  within of separation:
