Table sbs6a.public.jivesgroup Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
groupid int8 19
jiveentitlement.groupid Implied Constraint R
jivegroup.groupid Implied Constraint R
jivegroupperm.groupid Implied Constraint R
jivegroupprop.groupid Implied Constraint R
jivegroupuser.groupid Implied Constraint R
jivegroupuserhist.groupid Implied Constraint R
jivesgroupmember.groupid jsgmem_gid_fk R
jivesgroupprop.groupid jsgroupp_gid_fk R
jivestatuslevel.groupid Implied Constraint R
grouptype int4 10
name varchar 255
jiveproperty.name Implied Constraint R
displayname varchar 255
description varchar 1000  √  null
userid int8 19
jiveuser.userid Implied Constraint R
creationdate int8 19
modificationdate int8 19
status int4 10

Table contained 0 rows at Fri Aug 24 10:15 PDT 2012

Indexes:
Column(s) Type Sort Constraint Name
groupid Primary key Asc jivesgroup_pk
displayname Performance Asc jvusr_dsplynm_idx

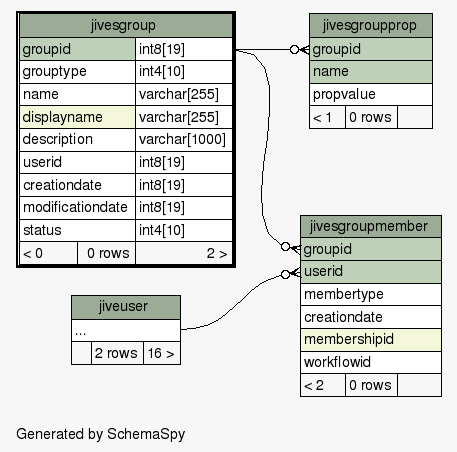

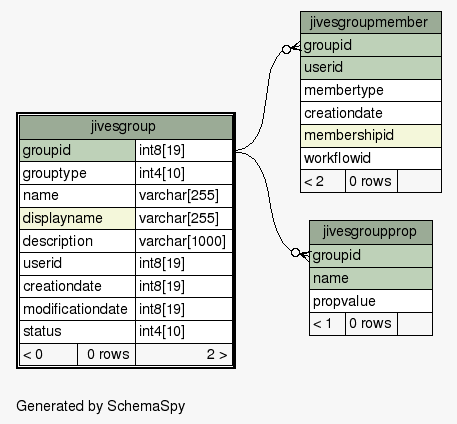

Close relationships  within of separation:
