Table JiveCMR.public.batch_job_instance Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
job_instance_id int8 19
batch_job_execution.job_instance_id job_inst_exec_fk R
batch_job_params.job_instance_id job_inst_params_fk R
version int8 19  √  null
job_name varchar 100
job_key varchar 32

Analyzed at Fri May 09 11:35 PDT 2014

Indexes:
Column(s) Type Sort Constraint Name
job_instance_id Primary key Asc batch_job_instance_pkey
job_name + job_key Must be unique Asc/Asc job_inst_un

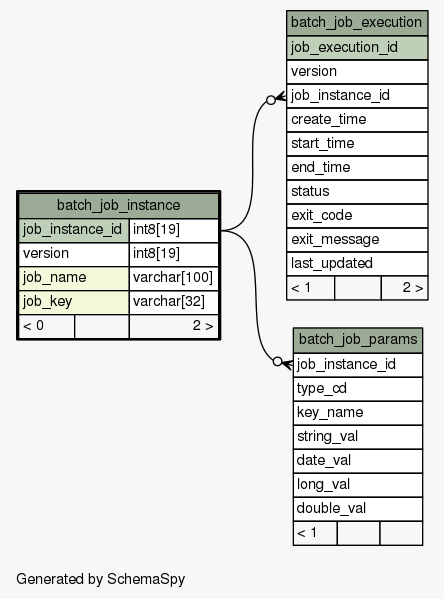

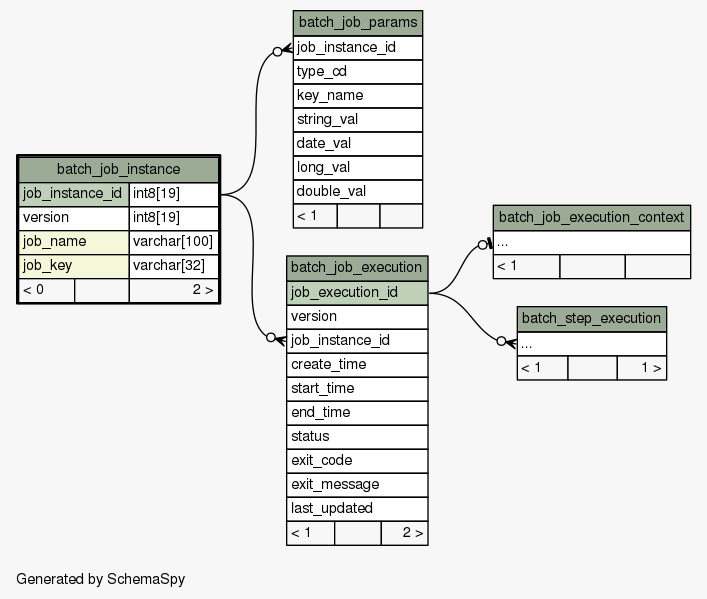

Close relationships  within of separation:
