Table JiveCore700.public.jivestoragefile Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
exstoragefileid int8 19
jivedocument.exstoragefileid jd_exfileid_fk R
jivestoragecomment.exstoragefileid jivestoragecomment_file_fk R
jivestoragefileversion.exstoragefileid jivestoragefileversion_file_fk R
espfileid varchar 128  √  null
exstoragecontainerid int8 19
jivestoragecontainer.exstoragecontainerid jivestoragefile_container_fk R

Analyzed at Fri Dec 20 10:31 PST 2013

Indexes:
Column(s) Type Sort Constraint Name
exstoragefileid Primary key Asc jivestoragefile_pk
exstoragecontainerid + espfileid Performance Asc/Asc jivestoragefile_cont_espid_idx

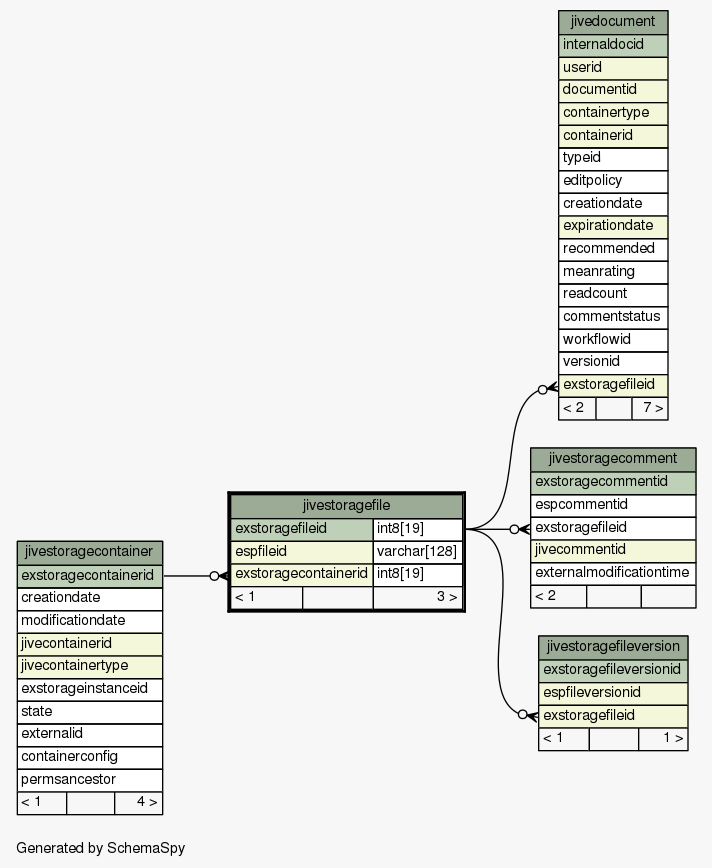

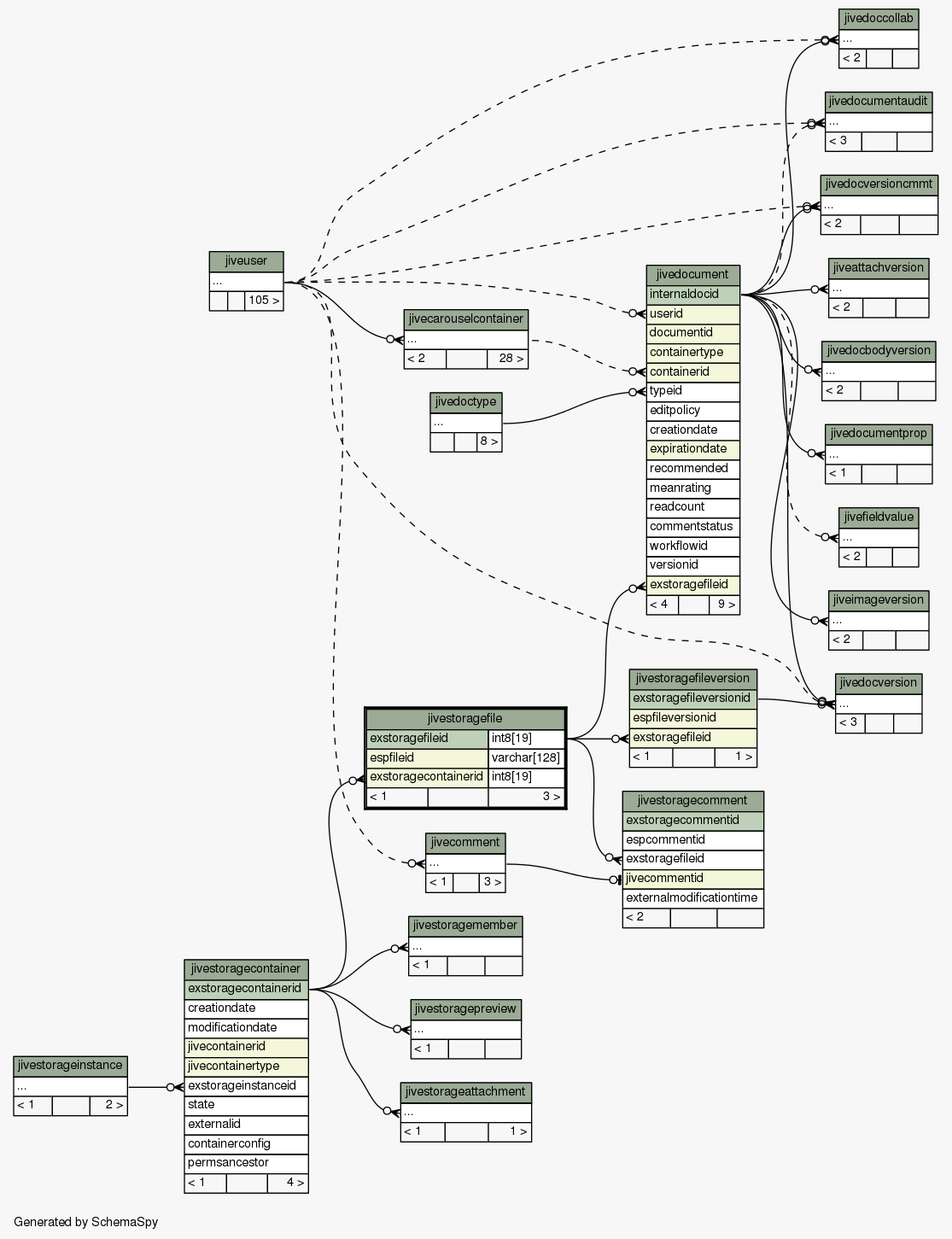

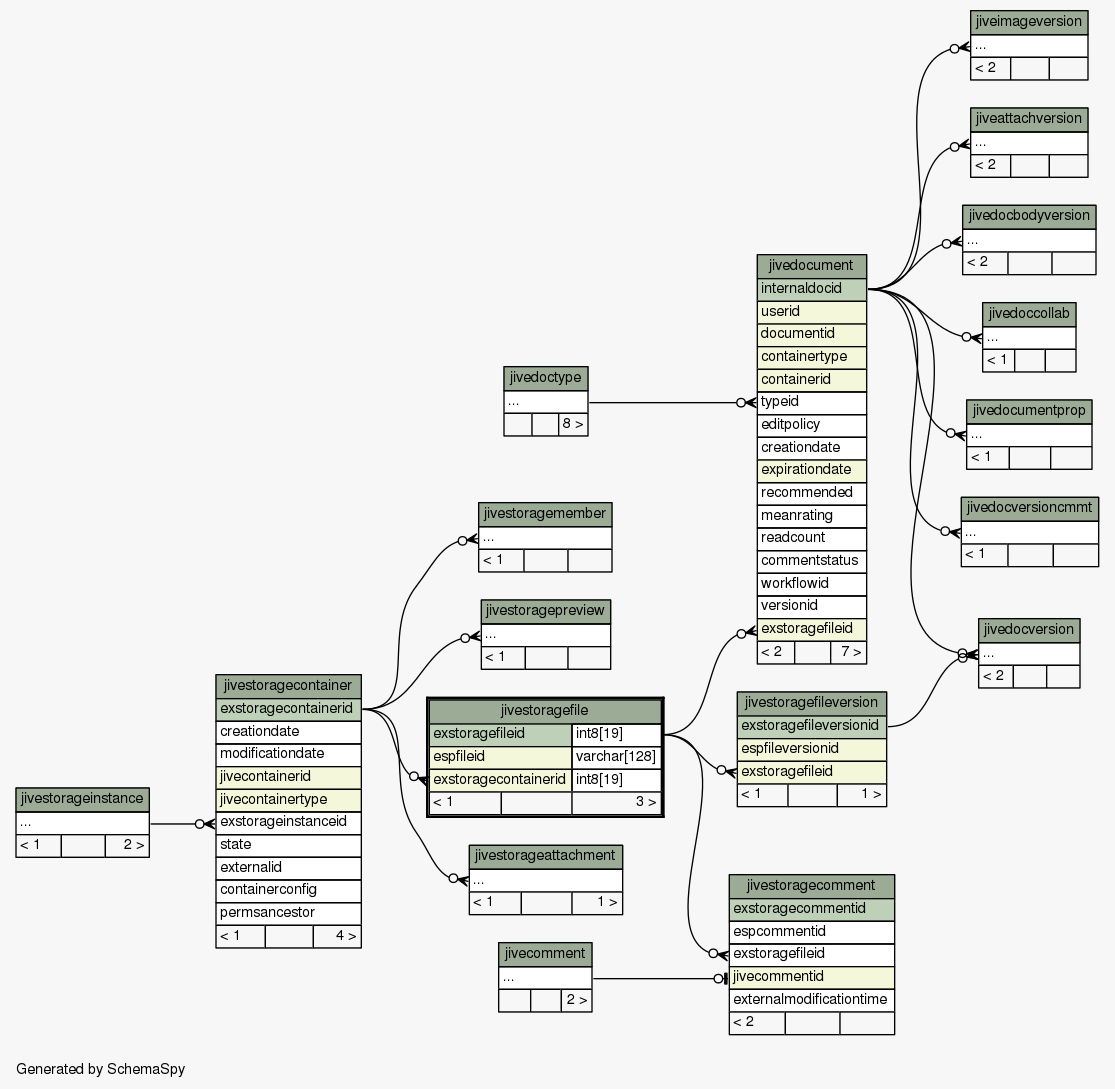

Close relationships  within of separation:
