Table JiveCore700.public.jiveuserrelgraph Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
graphid int8 19
jiveuserrel.graphid jvusrrel_fk_rlgrid R
jiveusrrelgrapr.graphid jvusrrelga_fk_grid R
jiveusrrelgrntf.graphid jvusrrelnt_fk_grid R
graphtypeid int4 10 1
name varchar 255
jiveproperty.name Implied Constraint R
enabled int2 5 1
labelpeer varchar 40  √  null
labelmanager varchar 40  √  null
labeldirrpt varchar 40  √  null
approvalsenabled int2 5 0
peerchoiceallowed int2 5 0
mgrchoiceallowed int2 5 0
drptchoiceallowed int2 5 0
reflexive int2 5 1

Analyzed at Fri Dec 20 10:31 PST 2013

Indexes:
Column(s) Type Sort Constraint Name
graphid Primary key Asc jiveusrrelgrph_pk

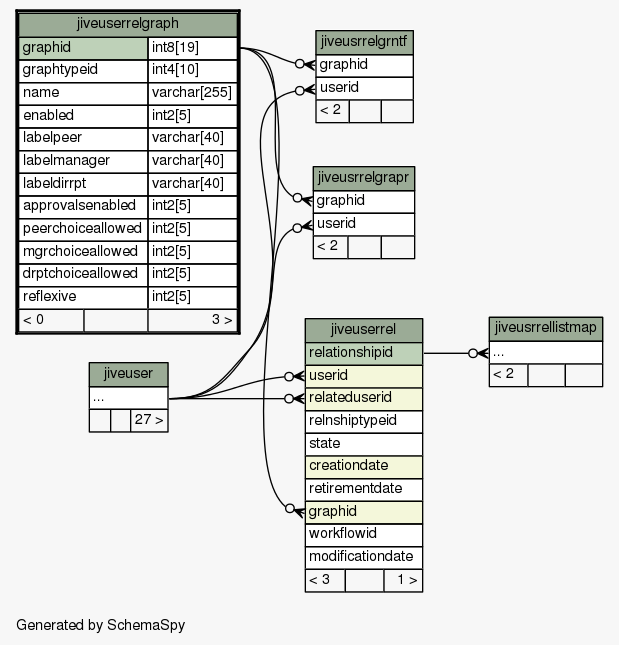

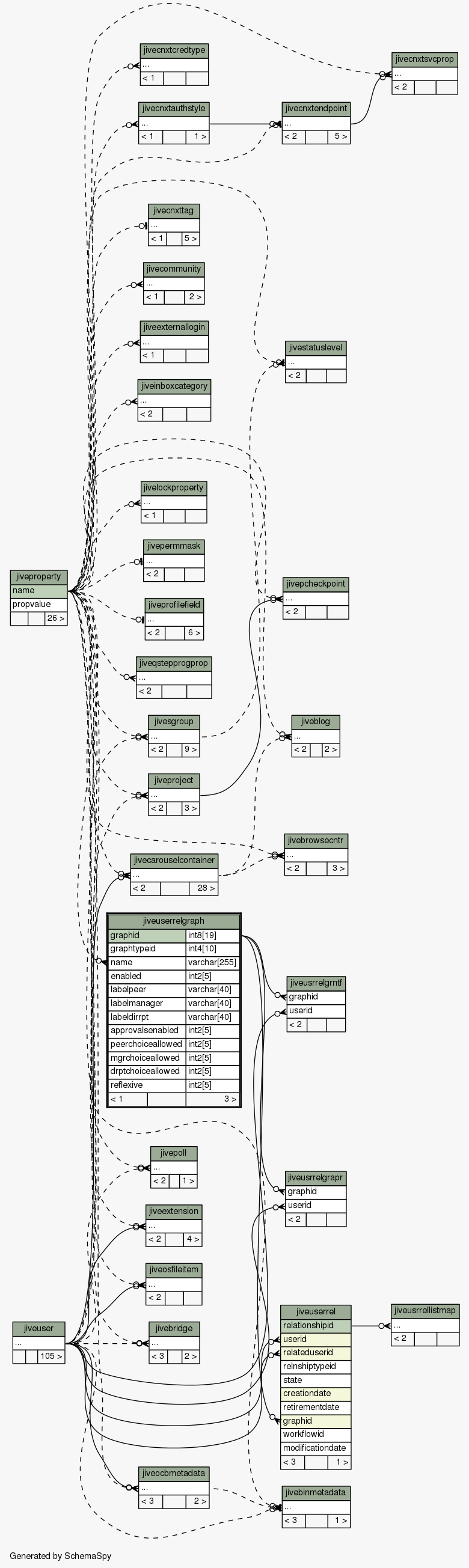

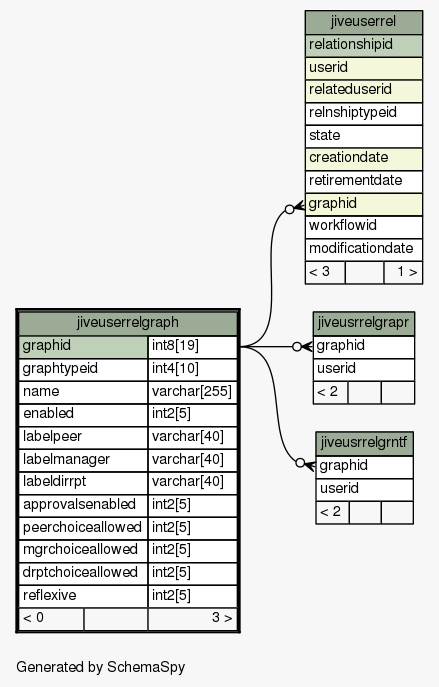

Close relationships  within of separation:
