Column Type Size Nulls Auto Default Children Parents Comments
widgetid int8 19
jivewidgetframe.widgetid jwidgetf_wid_fk R
classname varchar 255
type varchar 255  √  null
bridgeid int8 19  √  null
jivebridge.bridgeid Implied Constraint R
remotewidgetid int8 19  √  null

Analyzed at Fri Dec 20 10:31 PST 2013

Indexes:
Column(s) Type Sort Constraint Name
widgetid Primary key Asc jwidget_pk
classname Must be unique Asc jwidget_uk_idx

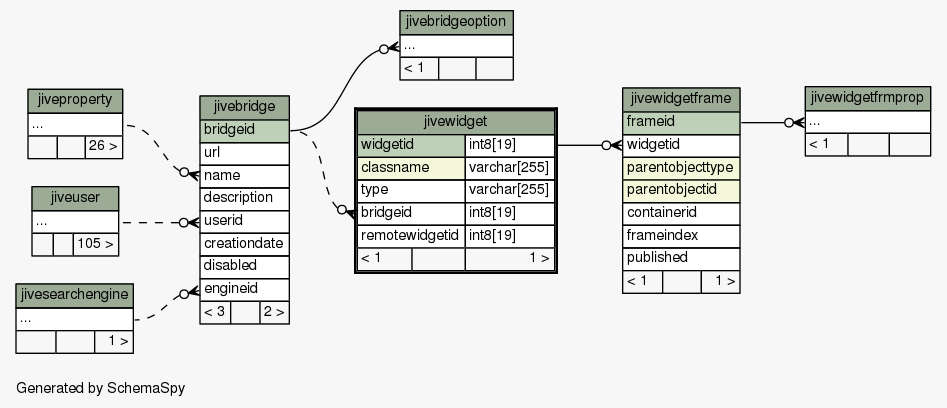

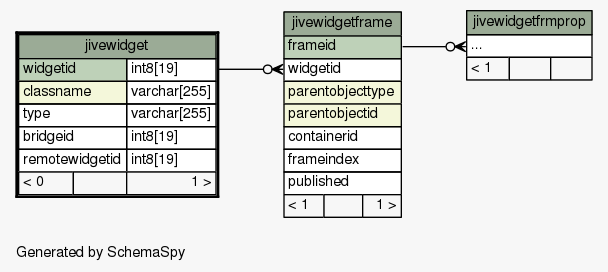

Close relationships  within of separation:
