Table JiveCore900.public.jiveuserrel Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
relationshipid int8 19
jiveusrrellistmap.relationshipid jvurlstlm_fk_relid R
jivecontentplacerel.relationshipid Implied Constraint R
userid int8 19
jiveuser.userid jvusrrel_fk_usrid R
relateduserid int8 19
jiveuser.userid jvusrrel_fk_rlusid R
relnshiptypeid int4 10 2
state varchar 20 'pending_approval'::character varying
creationdate int8 19
retirementdate int8 19  √  0
graphid int8 19
jiveuserrelgraph.graphid jvusrrel_fk_rlgrid R
workflowid int8 19  √  null
modificationdate int8 19

Table contained 0 rows at Fri Jan 13 13:20 PST 2017

Indexes:
Column(s) Type Sort Constraint Name
relationshipid Primary key Asc jiveusrrel_pk
relateduserid Performance Asc jvusrrel_relid_idx
userid + relateduserid + relnshiptypeid + state + retirementdate Must be unique Asc/Asc/Asc/Asc/Asc jvusrrel_uk2_idx
userid + relateduserid + graphid Performance Asc/Asc/Asc jvusrrel_uk_idx

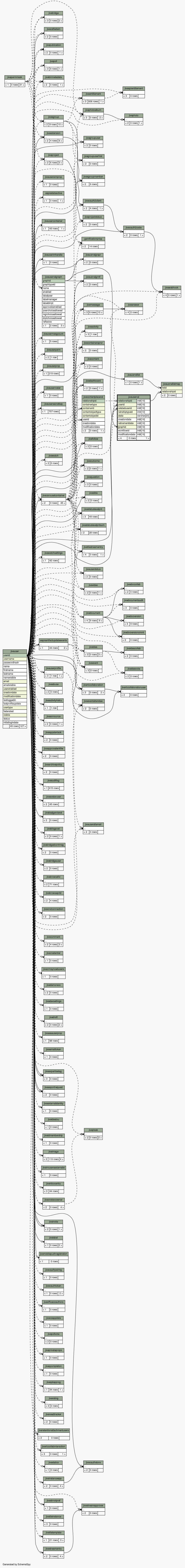

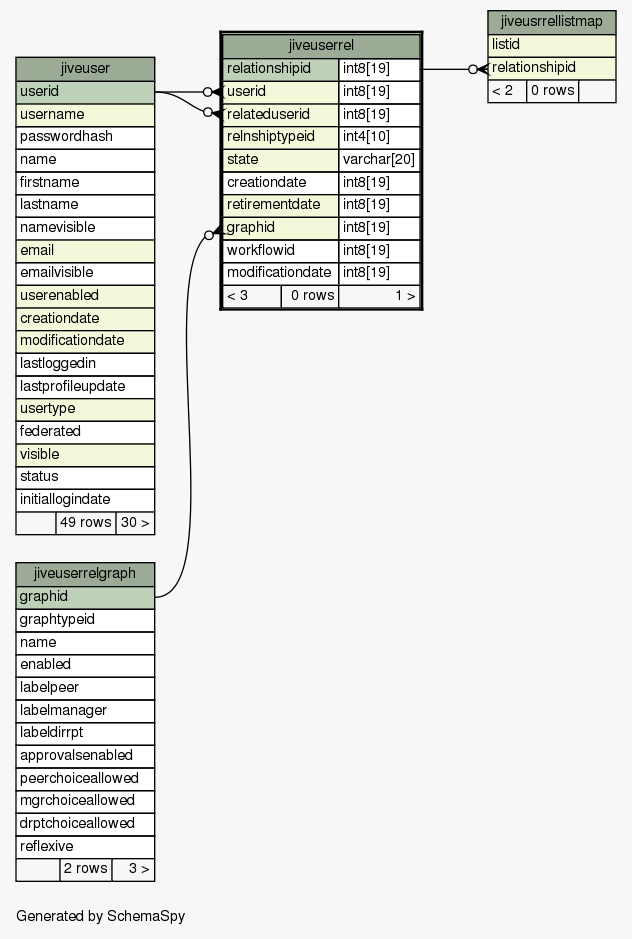

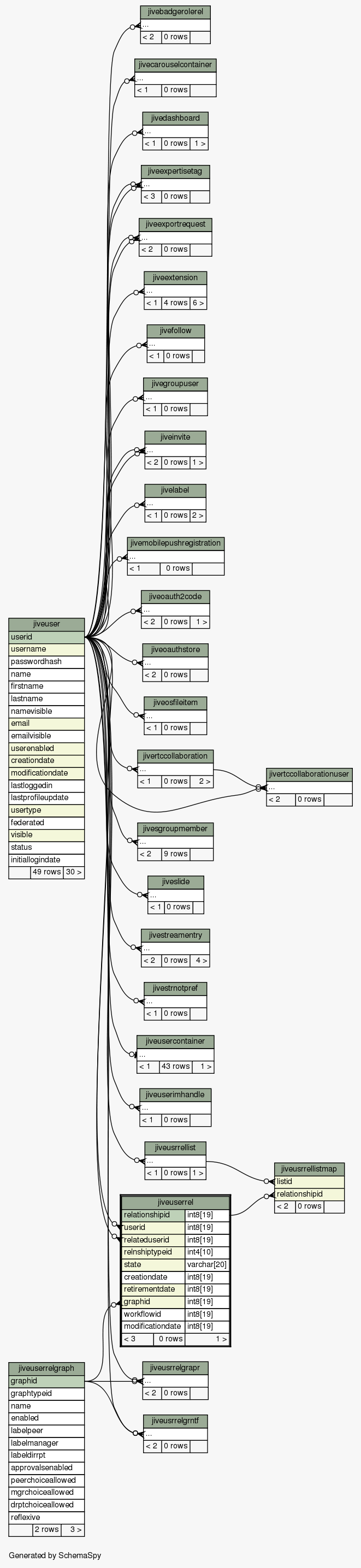

Close relationships  within of separation:
